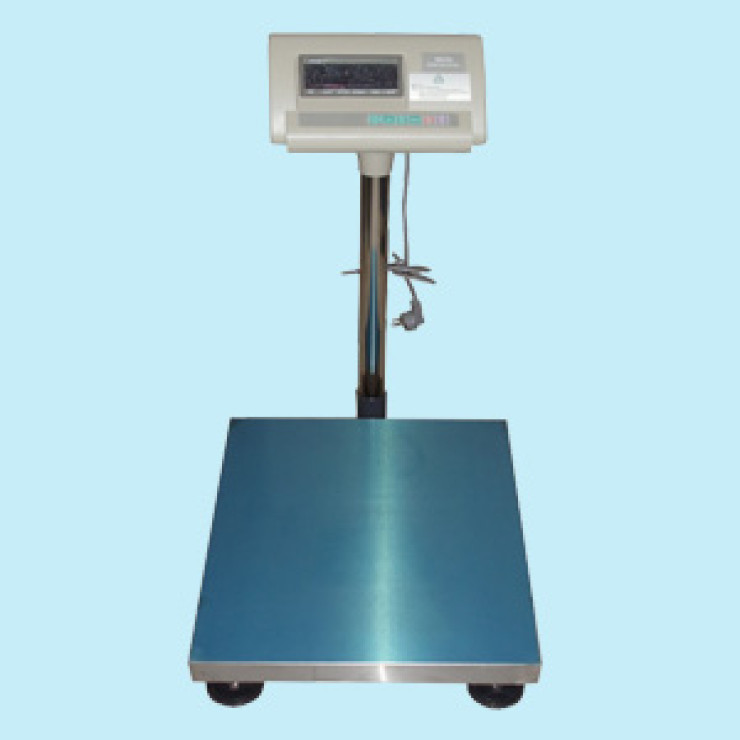

XK3190-A12

Category: Digital scales

Scan to contact on WeChat

WeChat QR Code

Specifications
Model: XK3190-A12 weighing indicator
Accuracy: Grade III, n=3000
Sample Rate: 10 time / second
Weighing Units: Kg, g, lb, pcs
Display: 6 bits LCD, 6 state indicating signals
Built-in Bi-directional RS-232 interface.
Scoreboard interface (Optional): In serial output mode: current loop signal, transmission distance ≤ 50m
Communication interface(optional): RS232C, Baud rate 1200/2400/4800/9600 optional
Power supply: Battery DC6V/4AH
Operating temperature/humidity: 0~40oC, ≤ 90%RH
Transporting Temperature: -20~50oC
Capacity- Readability (d): 100kg-20g, 150kg-20g, 300kg-50g, 500kg-50g
Platform Size(LxW): 300 x 400mm, 400 x 500mm, 500 x 600mm, 600 x 800mm
