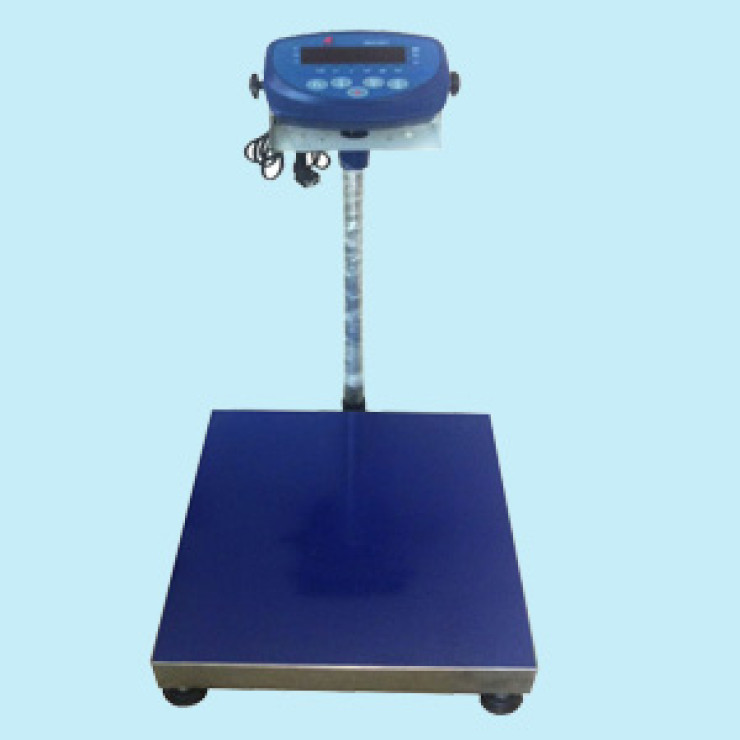

Model: XK3118T1

Category: Digital scales

Scan to contact on WeChat

Specifications

Model: XK3118T1 weighing indicator

Accuracy: Grade III, n=3000

A/D Conversion Mode: Adopts ∑ – ∆ Technology, 10 time per second

Input Sensitivity: ≥1.5uV/e

Excitation: DC 5V

Input Signal: -16mV~18mV

Built-in Bi-directional RS-232 interface.

Weighing Units: Kg, lb

Power supply: AC 85 ~ 245V, 50Hz ~ 60Hz: Build-in battery DC 6V/4AH

Working Temperature: 0~40oC, Working Humidity ≤ 90%RH

Capacity- Readability (d): 100kg-20g, 150kg-20g, 300kg-50g, 500kg-50g

Platform Size(LxW): 300 x 400mm, 400 x 500mm, 500 x 600mm, 600 x 800mm
